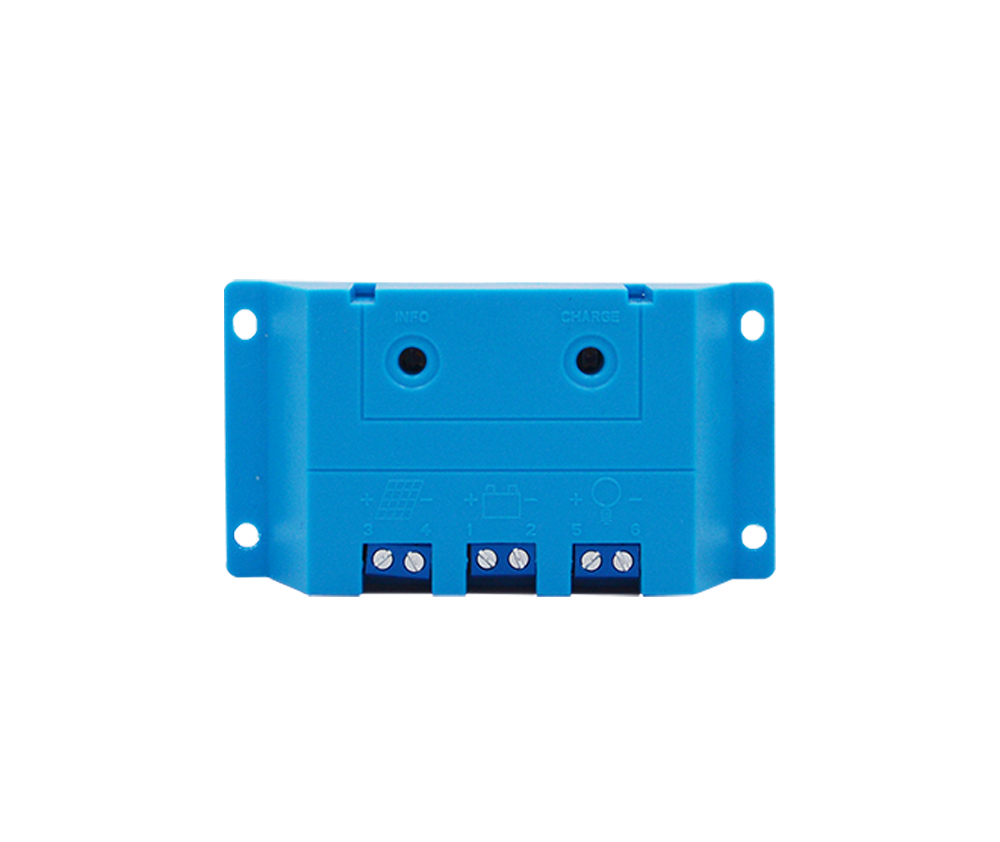

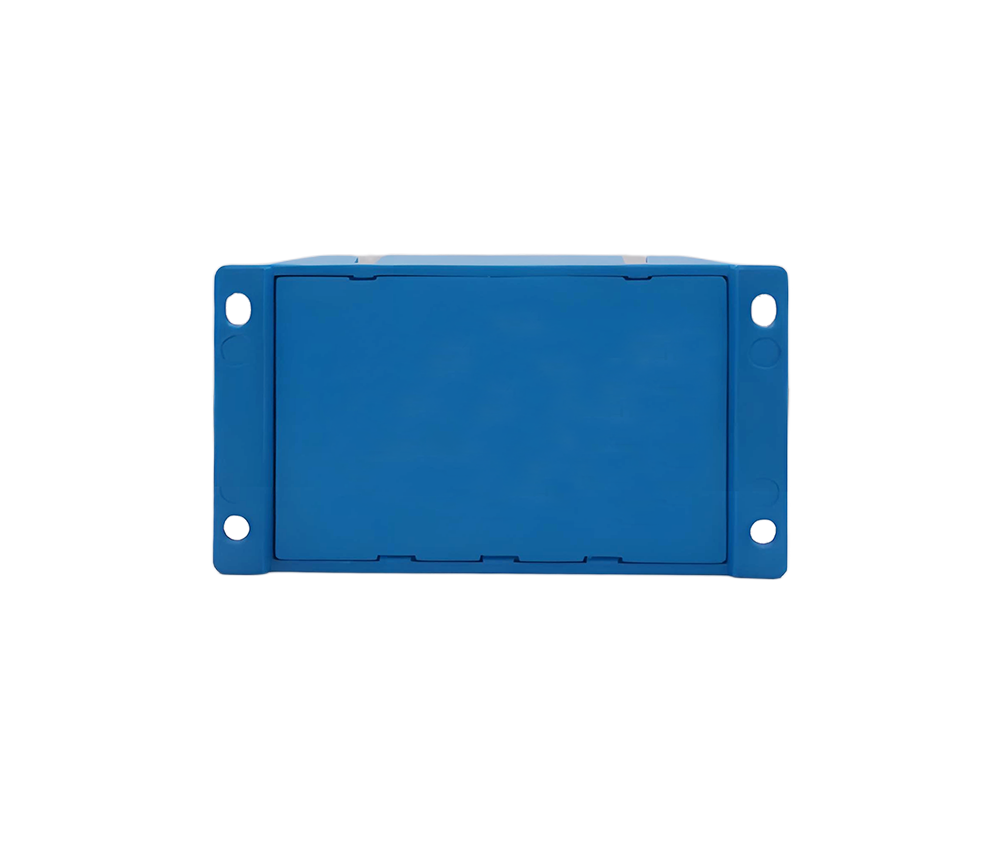

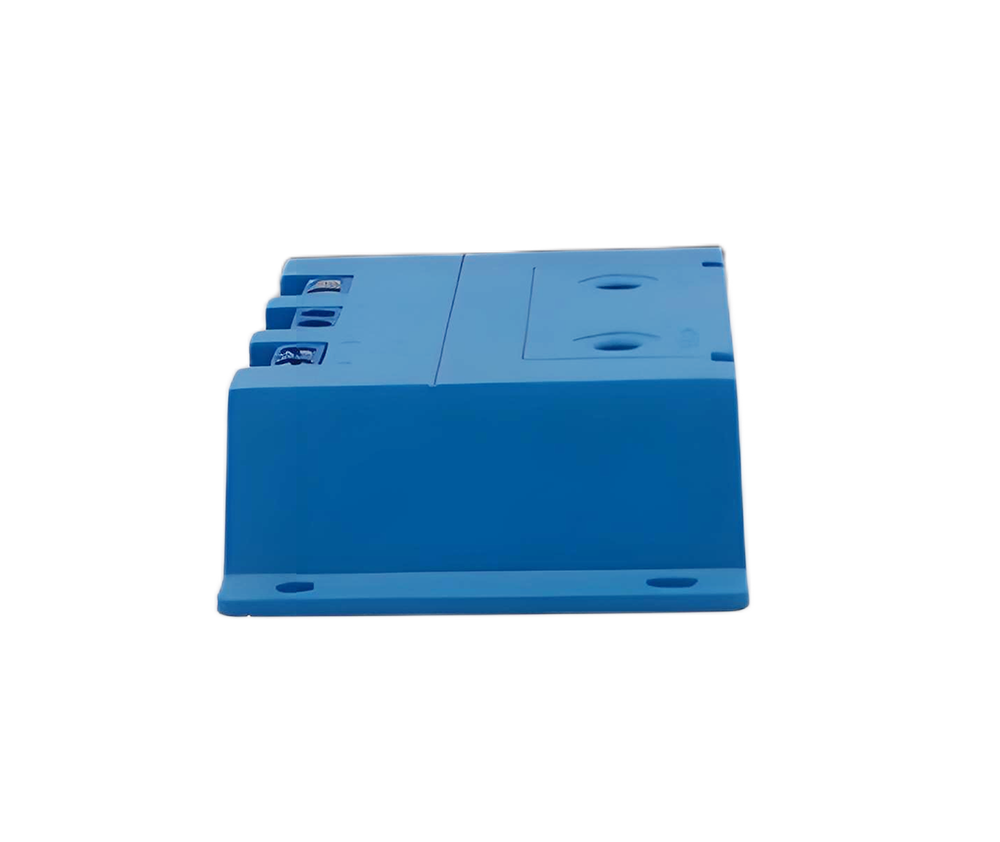

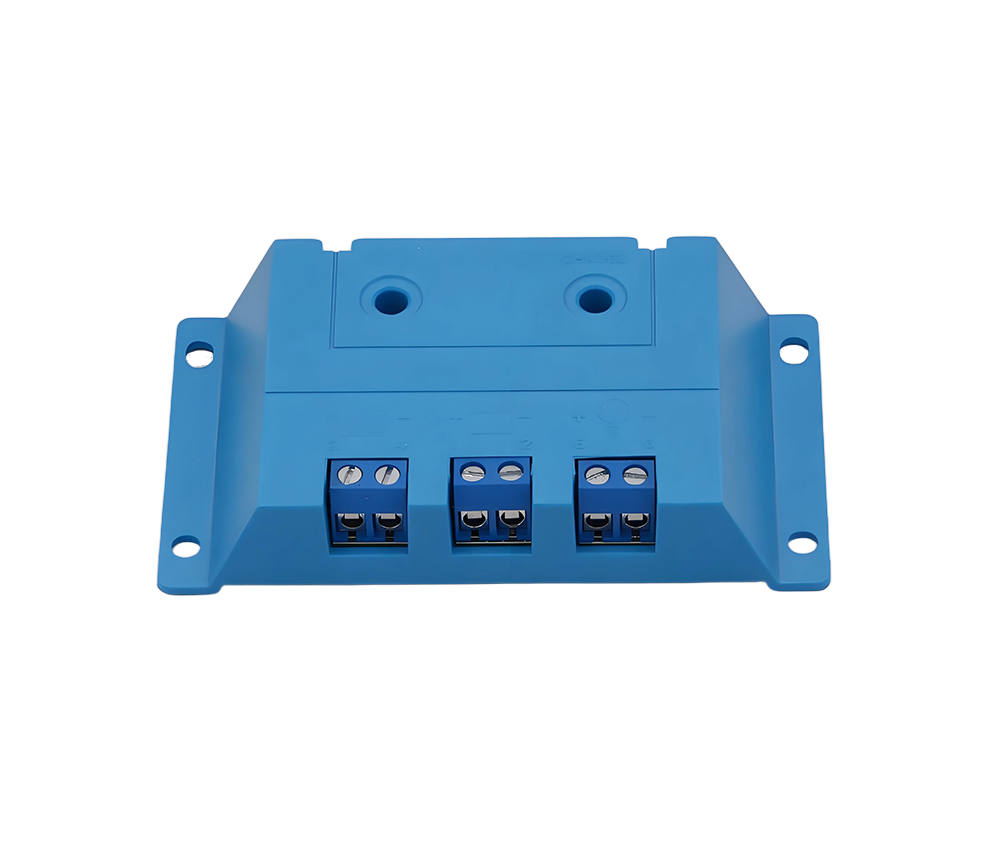

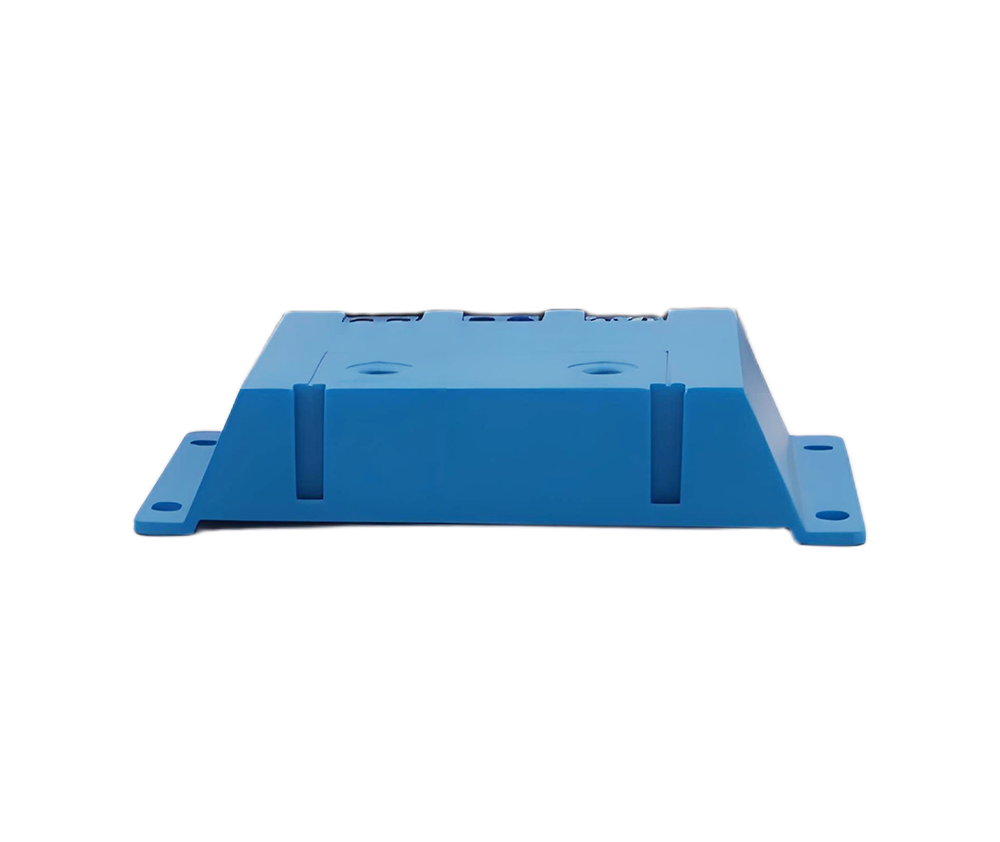

5A PWM SOLAR CHARGE CONTROLLER

Solar Home

RVs/Boats

CCTV Camera

Industrial

SOLAR CHARGE CONTROLLER

PWM Solar Charge Controller

Shine Series

PWM, 10A, 12V, Max volt on PV terminal 25V,

Battery Type GEL.

Shine series solar controller is specifically designed to meet the needs of solar home systems. It provides the best cost-effective.

Product Manual

Send an Email

Add to Cart

Main Features


  • Low cost and high reliability design

  • 12V system voltage

  • Clear readable display of charge/discharge and error description

  • Temperature compensation

  • Four stage charge way: fast, boost, equalization, float

  • Full automatic electronic protect

Datasheets


ItemShine05
Battery
Parameters		System Voltage 12V
Max Charging Current5A
Fast Voltage<14.5V @25℃
Boost Voltage14.5V @25℃
Equal Voltage14.8V @25℃（Liquid）
Float Voltage13.7V @25℃
Temp. Compensation-4.17mV/K per cell (Boost, Equal),   -3.33mV/K per cell (Float)
Over Voltage Protection15.5V
Battery TypeGEL
Low Voltage Disconnect11V
Low Voltage Reconnect12.5V
Max Battery Voltage20V
Panel
Parameters		Max Solar Voltage25V
Day/Night Threshold8.0V
Load
Parameters		Output Current5A
Usb Interface---
Work ModesStandard
System
Parameters		Dimensions (mm)48.5*90*18.2mm
Net weight (g)36g
Wire Size1.5mm²
Self Consumption＜10mA
Ambient Temperature-35~+60℃
Degree Of ProtectionIP22


Shine05 series User Manual
