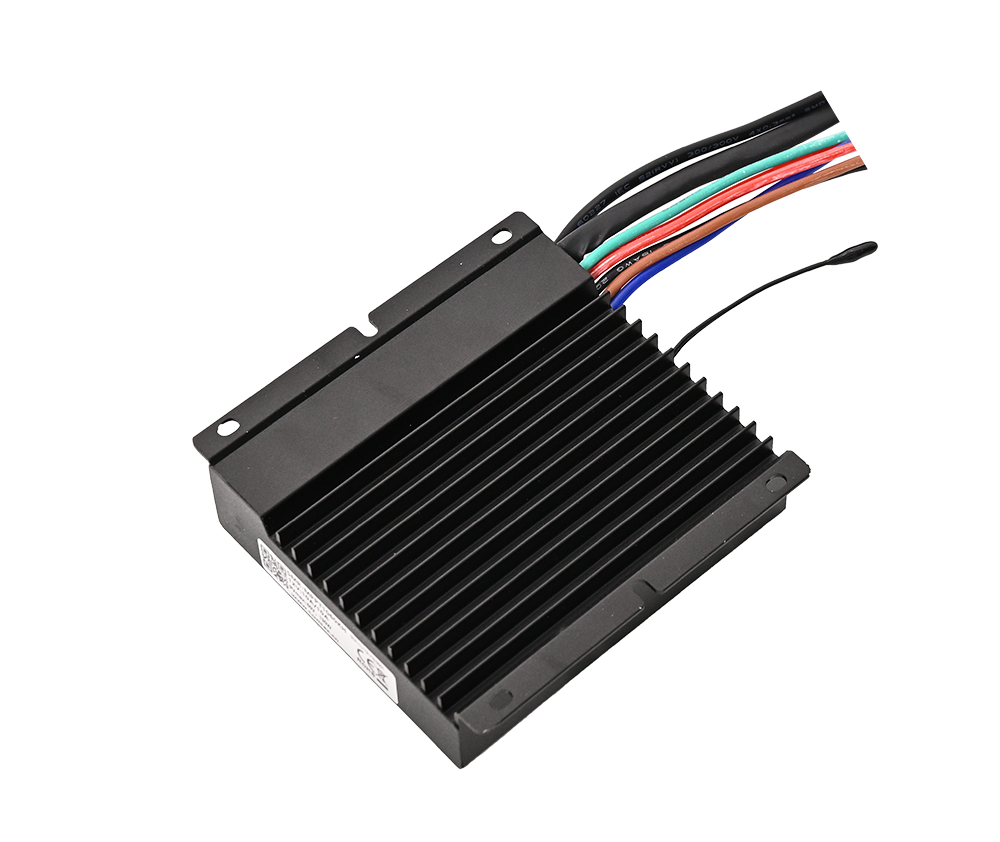

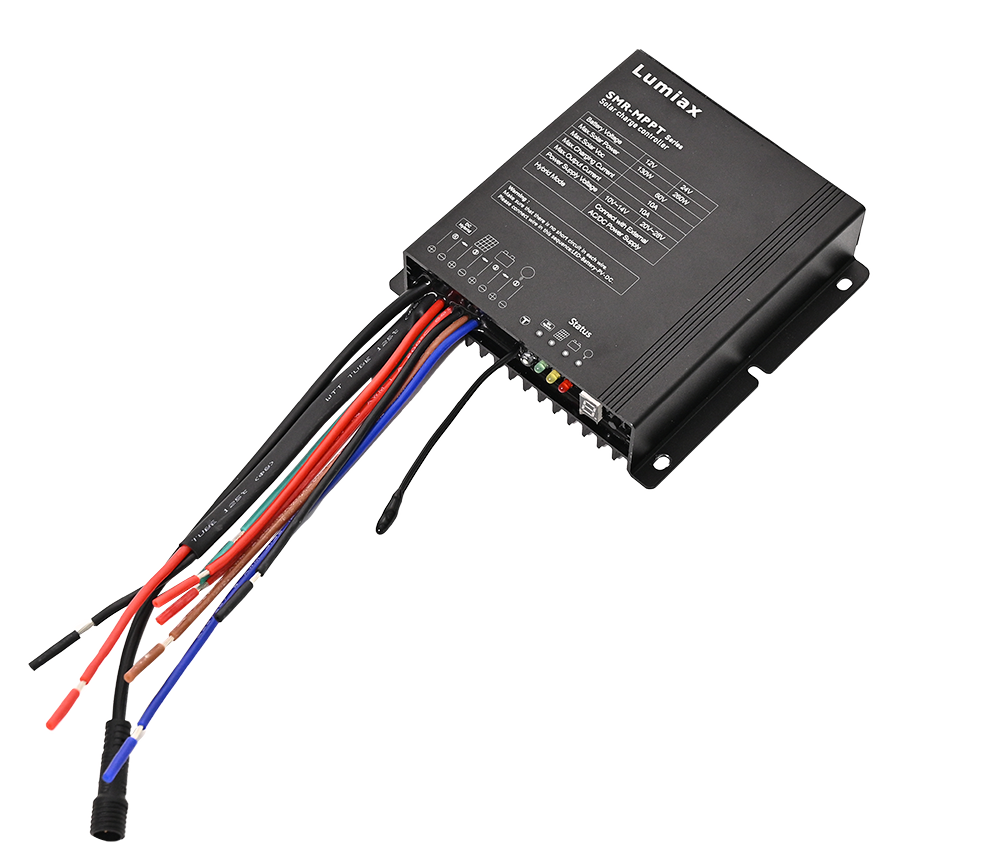

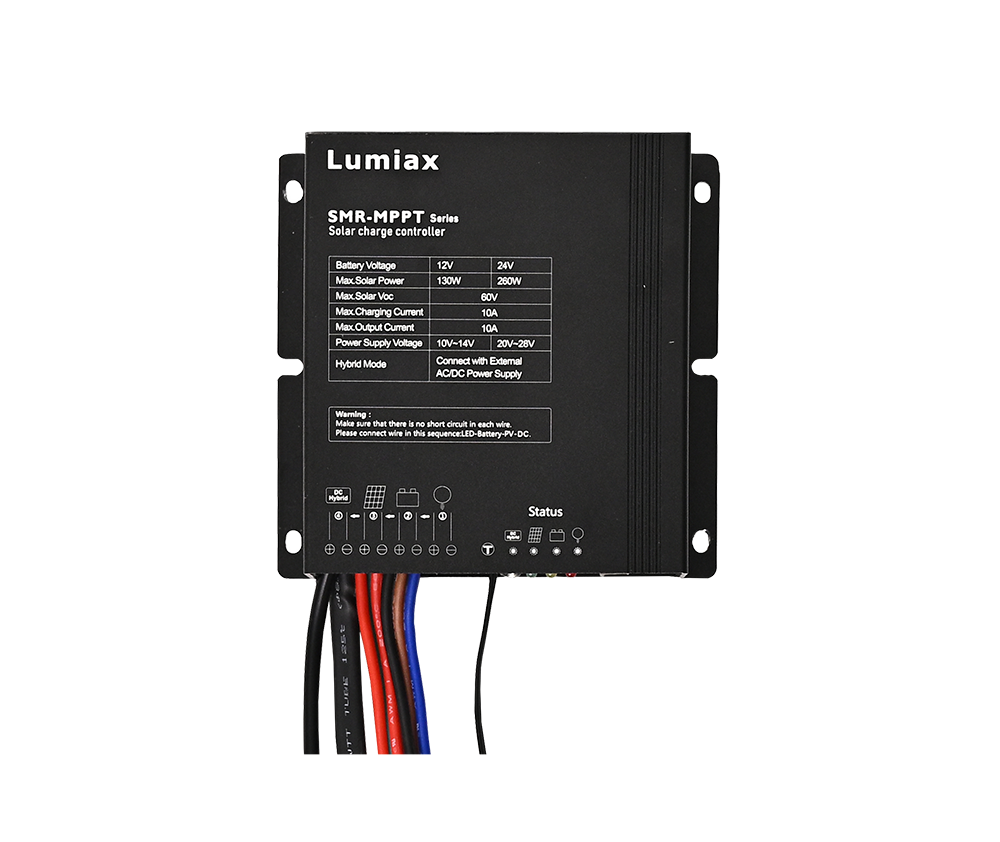

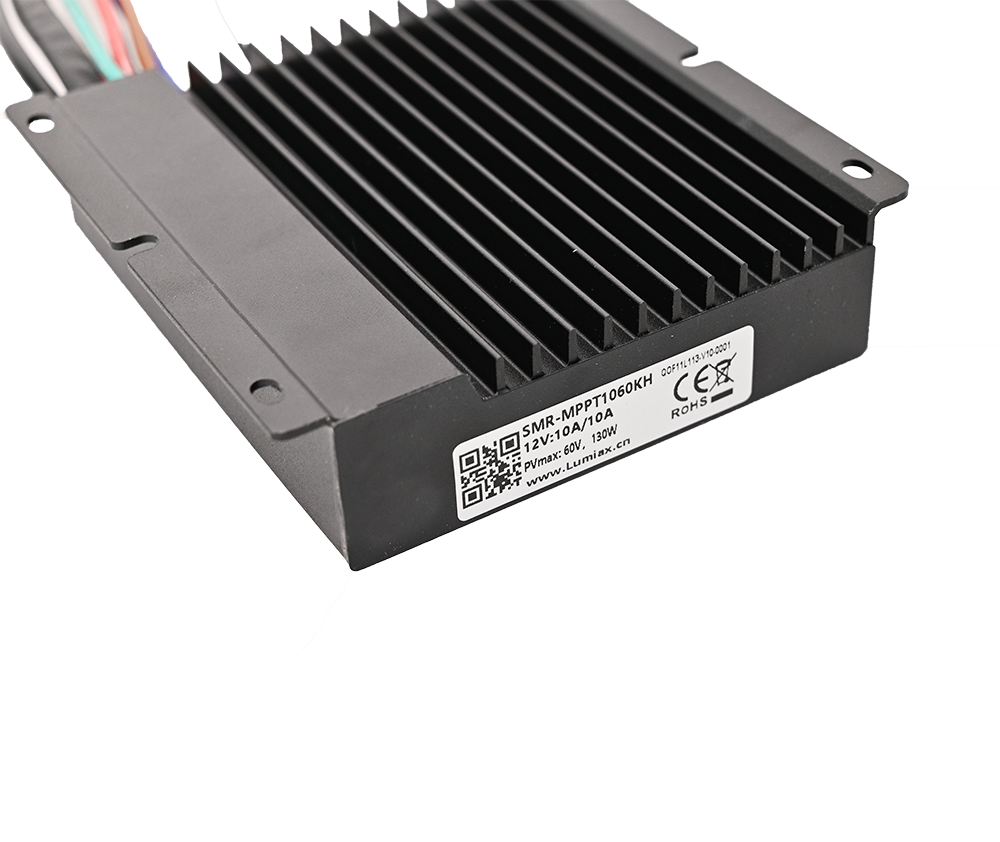

SMR-MPPT1060H
10A MPPT SOLAR CHARGE CONTROLLER

Solar Home

RVs/Boats

CCTV Camera

Industrial

SOLAR CHARGE CONTROLLER

MPPT Solar Charge Controller

Smart-MPPT Series

MPPT, 10A, 12V/24V auto, 130/260W max input power,

60V Max volt on PV terminal , infrared, IP67.

Communication mode Infrared/RS485.

SMR-MPPT series solar controller, designed for the use of solar energy systems intelllgent programming MPPT controller.The charging efficlency Is about 20% higher than the traditlonal PWM controller, which can drop the cost of the whole system.

Product Manual

Send an Email

Add to Cart

Main Features


  • Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%.

  • High charge conversion efficiency up to 97.2% .

  • Monitoring of the running slatus and parameters.

  • Dual automatic limit function for rated charging current and charging power.

  • Clear and easy lo understand charging and discharging, fault indication

  • Suitable for Gel, Liquid, AGM and Lithium battery.

  • Extemnal temperalure sensor with aulomatic temperalure compensation.

  • Aulomatic over-lemperature power reduction function

  • Four stage charging: MPPT, boost, equalization, float.

  • When BMS power off because of LVD, it can activate the system automatically.

  • The battery and mains power (DC) complement each other, and the load power supply priority can be set. The controller automatically switches between the two according to the setling to ensure the normal operation of the load.

  • 0℃ Charging Prolection(Lithium).

  • The communication interface provides external power supply.

  • Waterproof lP67, Strong and durable aluminum case,

  • Perfect EMC & thermal design.

  • Full aulomalic eleclronic protect function


Datasheets

ItemSMR-MPPT1060HSMR-MPPT1060H-RS485
Max Charging Current10A
System Voltage12V/24V automatical recognization
Battery TypeLithium, Liquid, Gel, AGM (Programmable, default: Gel)
Liquid, Gel and AGMMPPT Charging Voltage <14.5/29.0V@25℃
Boost Voltage14.0~14.8V/28.0~29.6V(Default: 14.5/29.0V@25℃, Programmable)
Equalization Voltage14.0~15.0V/28.0~30.0V(Default: 14.8/29.6V@25℃, Liquid/AGM, Programmable)
Float Voltage13.0~14.5V/26.0~29.0V(Default: 13.7/27.4V@25℃, Programmable)
Low Volt. Disconnect10.8~11.8V/21.6~23.6V(Default: 11.2/22.4V, Programmable）
Reconnect Voltage11.4~12.8V/22.8~25.6V(Default: 12.2/24.4V, Programmable）
Overcharge Protect15.5/31.0V
Temp. Compensation-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float)
LithiumCharging voltage target10.0~32.0V (Programmable)
Charging voltage recovery9.2~31.8V (Lithium, Programmable）
Low voltage disconnect9.0~30.0V (Lithium, Programmable）
Low voltage reconnect9.6~31.0V (Programmable)
0℃ Charge ProtectionYes, No, Slow(Lithium, default: Yes)
Max volt on Bat. Terminal35V
Max input power130/260W
Max volt on PV terminal *1 60V
Dusk/Dawn detect volt.3.0~20.0V(Programmable）
Day/Night delay time0~30Min (Programmable）
MPPT tracking range   *2  (Battery Voltage + 1.0V)~Voc*0.9
Max tracking efficiency>99.9%
Mains modeExternal DC power supply
Power supply voltage10V~14V(12V system); 20V~28V(24V system)
Output Current10A
Communication modeInfraredRS485
Power supply priorityMains priority/battery priority (Default: battery priority, programmable)
Max charge conversion97.2%
Self consumption7~18mA
Dimensions113*115.3*29.8mm
Net weight516g
Ambient temperature-35~+60℃
Ambient humidity0~100%RH
Protection degreeIP67
