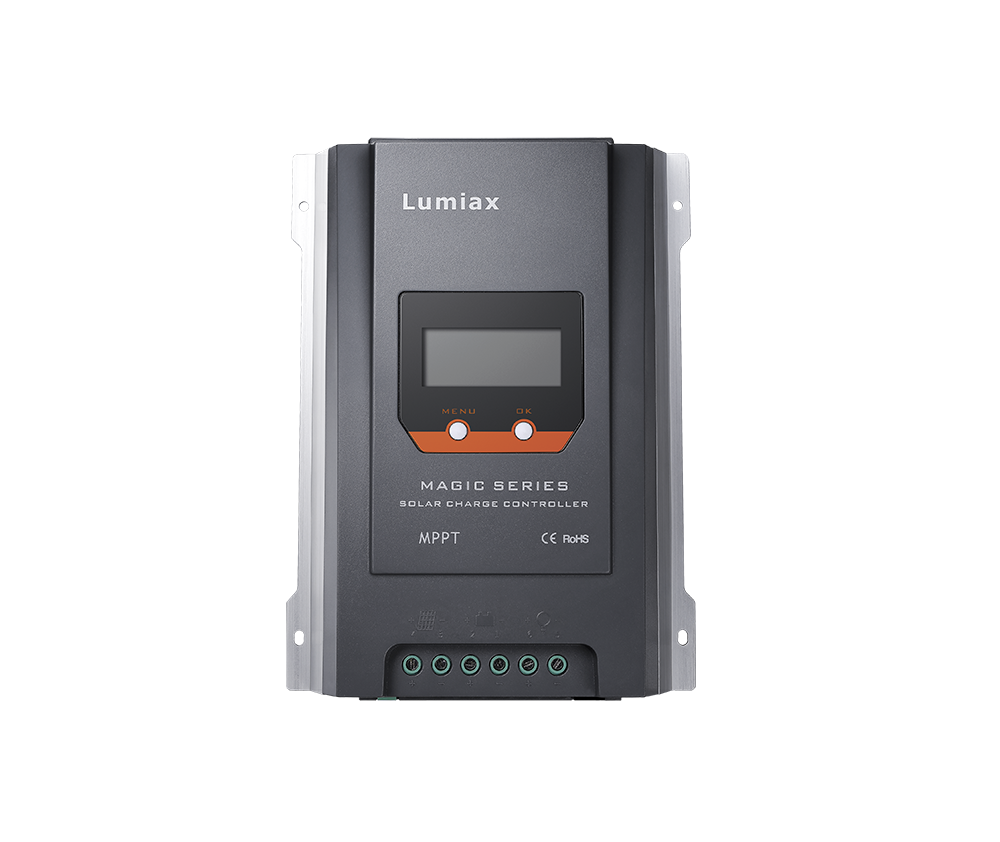

MT4015/RS485/Bluetooth
40A 48V MPPT SOALR CHARGE CONTROLLER

Solar Home

RVs/Boats

CCTV Camera

Industrial

SOLAR CHARGE CONTROLLER

MPPT Solar Charge Controller

MT Series

MPPT, 40A, 24V/48V auto, 1000/2000W  max input power,

150V@-20℃；138V@25℃ max solar voltage,

LCD display, common negative.

Magic ube series solar controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the controller conversion efficiency up to 98%.

Product Manual

Send an Email

Add to Cart

Main Features


  • 12/24/36/48V automalic recognition

  • Optional APP version for Bluetooth communication

  • Real-lime energy slatistics funclion

  • Perfect EMC & thermal design

  • A combination of multiple tracking algorithms enables tracking the maximum power point quickly and accurately

  • Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%

  • Full digilal technology, high charge conversion efficiency up to 98%

  • LCD display design, read operating data and working condition easily

  • Flexible System baltery selection: Liquid, Gel, AGM and Lithium

  • Exlends baltery life through accurale remote temperature sensor

  • The Controller is prolecled against over-temperature due to built-in power reduction function

  • Four slages ballery charging process: MPPT, boost, equalization, float

  • Dual automatic protection to avoid exceeding the raled charging power and current

  • Multiple load control modes: Aiways on, Street lamp, User-defind Mode

  • Two USB interfaces(only -EU model)

  • lOT Wireless communication or Bluetooth communication functions optional

  • With the wireless communicalion function of the lOT , the controller can be connected remotely through loT/GPRS

  • Monthly charging data can be calculated and displayed by grouping and graphs

  • Based RS-485 standard Modbus protocol with RJ11 interface lo maximize the communication needs of different occasions.

  • Full automatic electronic protect funclion for increased charge controller availability

Datasheets

ItemMT2015                                MT4015
Max Charging Current20A  40A
System Voltage24V/48V automatical recognization
Battery TypeGel, AGM, Liquid, Lithium（default: Gel)
Max volt on Bat. Terminal65V
Gel, AGM, LiquidMPPT Charging Voltagebefore boost or equalization charging stage
Boost Voltage28.0~29.6V/56.0~59.2V @25℃（default:29.0/58.0V）
Equalization Voltage28.0~30.0V/56.0~60.0V @25℃（default:29.6/59.2V）
Float Voltage26.0~29.0V /52.0~58.0V@25℃（default:27.4/54.8V）
Low voltage disconnect21.6~23.6V/43.2~47.2V,SOC1~5(default: 22.4/44.8V)
Low voltage reconnect22.8~25.6V/45.6~51.2V（default: 24.0/48.0V)
Overcharge Protect31.3/62.3V
Temp. Compensation-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float)
LithiumCharging target voltage20.0~64.0V (Lithium, default: 29.4V)
Charging recovery voltage18.2~63.8V (Lithium, default: 28.7V)
Low voltage disconnect18.0~60.0V (Lithium, default: 21.0V)
Low voltage reconnect18.6~62.0V (Lithium, default: 22.4V)
Max volt on PV terminal *1150V@-20℃；138V@25℃
Max input power500/1000W  1000/2000W
Day/Night threshold6.0~40.0V（default: 16.0/32.0V)
Day/Night delay time0~30min(default: 0min)
MPPT tracking range *2      （Battery Voltage + 2.0V）~Voc*0.9
Output Current20A                 30A
Load modeAlways on, Street lamp, User-defind Mode
Max tracking efficiency>99.9%
Max charge conversion97.0%
Dimensions255*187.5*63mm    255*187.5*89mm
Weight1.41Kg2.5Kg
Self consumption≤8mA
CommunicationRS485(RJ11 interface)
OptionalIoT, Cyber-BT(Internal / External)
GroundingCommon Negative
Power terminals6AWG(16mm²)
Ambient temperature-20℃~+45℃
Storage temperature-25℃~+70℃
Ambient humidity≤95%RH，No condensation
Protection degreeIP32
